KUS 2" multi-instrument with touch

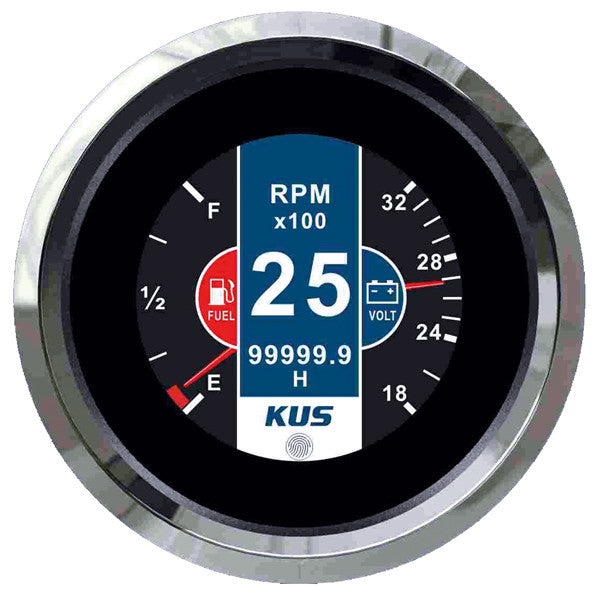

KUS KMG-20T 2″ Multi-instrument with Touch

KUS KMG-20T is a multifunctional digital instrument with touch screen and app control. It collects important boat data in one instrument and integrates 10 different instrument functions.

Features:

• Displays voltage, fuel level, water level, water temperature, oil temperature, oil pressure, septic tank and trim
• Clock and other data are set via the touchscreen or app
• Black or white dial
• Front ring in 316 stainless steel
• Display brightness can be set between 10 and 100%
• Customizable alarms for fuel, water temperature and oil pressure
• Compatible with NMEA 2000 and two analog inputs

Specifications:

• Model: KMG-20T
• Size: 2″
• Hole size: 52 mm
• Depth: 60 mm
• Voltage: 9–32 V
• Consumption: <100 mA at 12 V
• IP rating: IP67
• Operating temperature: −30 °C to +85 °C

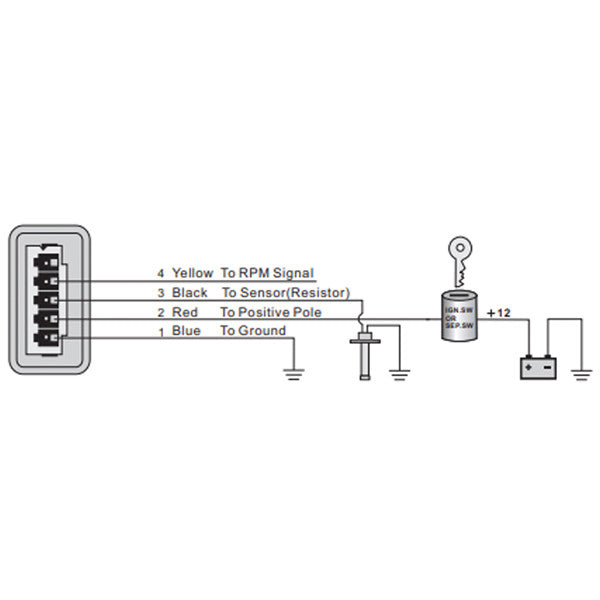

• Input signal: NMEA 2000 and two analog inputs, one for resistance and one for speed

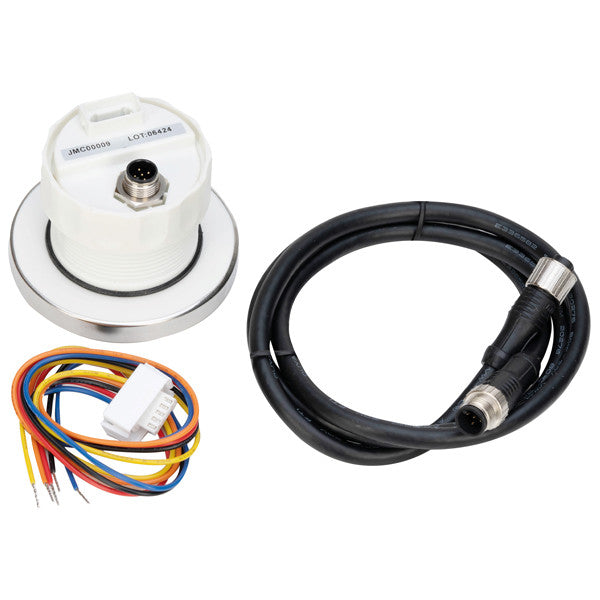

Supplied with:

• 1 meter NMEA 2000 drop cable
• Cable for connecting to analog sensors
• Manual
