SKU:1323091

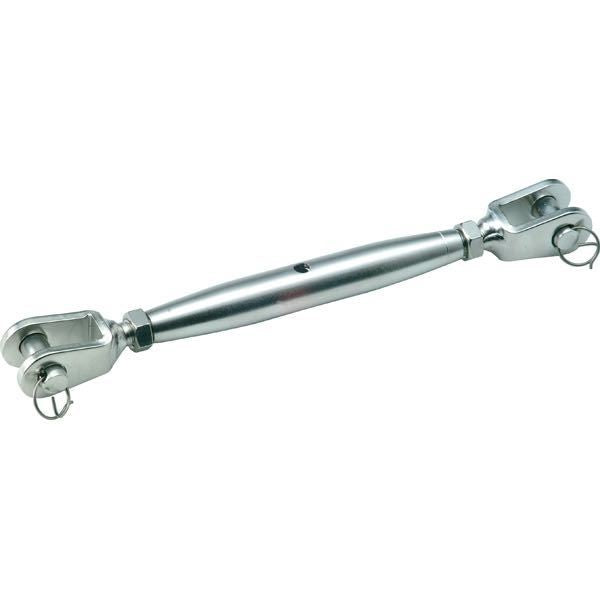

Turnbuckle
Turnbuckle
Regular price
135 SEK
Regular price
Sale price
135 SEK
Customs duties and taxes are included when selling within the EU.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
A rigging screw is a connecting screw used to tighten and adjust rigging, stays or other wires. On a boat, primarily to stabilize the mast.
The turnbuckle consists of two fastening eyes or forks, attached to a right-handed and a left-handed screw. Between the ends is a "glove" that functions as a long nut. By turning the glove, the wire can be tensioned without twisting it. Thread x Fork width x Length x Breaking strength
The turnbuckle consists of two fastening eyes or forks, attached to a right-handed and a left-handed screw. Between the ends is a "glove" that functions as a long nut. By turning the glove, the wire can be tensioned without twisting it. Thread x Fork width x Length x Breaking strength
| Thread | Fork width | Length | Breaking limit |
| M5 | 6mm | 130-190mm | 750 kg |
| M6 | 8mm | 150-220mm | 1400 kg |
| M8 | 10mm | 180-255mm | 2200 kg |
| M10 | 12 mm | 220-300mm | 3450 kg |
| M12 | 14 mm | 270-385mm | 5000 kg |
