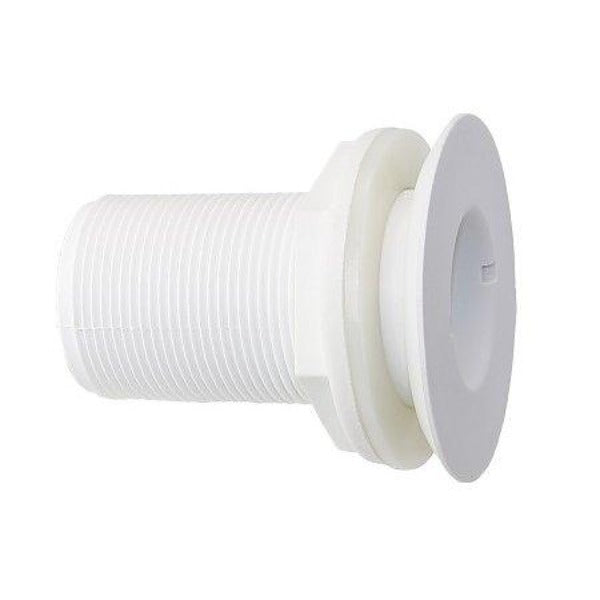

TruDesign Bordgenomföring

Bordsmontering i komposit.
Platt ände.

1/2" - R= 21,3mm, Øi= 13mm, Øa= 32mm, H= 70mm

3/4" - R= 26,9mm, Øi= 18mm, Øa= 42mm, H= 70mm
Inst. verktyg TD90933

1" - R= 33,7mm, Øi= 24mm, Øa= 52mm, H= 70mm
Inst. verktyg TD90934

1 1/4" - R= 42,4mm, Øi= 31mm, Øa= 64mm, H= 90mm
Inst. verktyg TD90935

1 1/2" - R= 48,3mm, Øi= 37mm, Øa= 80mm, H= 90mm
Inst. verktyg TD90936
